ip Command Examples

The ip command is one of the most used networking commands in Linux and there are multiple reasons why.

Using the ip command, you can get network stats, configure interfaces, manage network routing, and even monitor the network activity.

Sounds like a Swiss army knife for the network. Right? Yes, it is.

So in this tutorial, I will walk you through how you can use the ip command through the following essentials:

• Syntax and common flags of the ip command
• Practical examples of the ip command

Let's start with the first one.

How to use the ip command in Linux

To use the ip command to its maximum potential, it is important to know the syntax so here's a simple syntax you need to follow:

ip [ OPTIONS ] OBJECT [COMMAND]

Looks a little more complex than the traditional Linux commands, right? Let me break it down for you.

• [OPTIONS]: it is used to change the default behavior of the ip command.
• OBJECT: here's where you specify the aspect of the network you want to work with. I will be sharing a list of objects in a moment.
• COMMAND: here you specify the action you want to perform on the object.

Here's a list of every object which can be used with the ip command:

Object	Description
link	Manages network devices and their attributes.
address	Configures IP addresses and related settings.
addrlabel	Manipulates address labels for routing.
route	Displays and manages the IP routing table.
rule	Manages routing policy rules.
neigh	Shows and manages ARP or neighbor objects.
ntable	Manages routing tables for policy routing.
tunnel	Manages various tunneling interfaces.
tuntap	Creates and manages TUN/TAP devices.
maddress	Manages multicast addresses.
mroute	Displays and manages IP multicast routing.
mrule	Manages rules for multicast groups.
monitor	Monitors network events and changes.
xfrm	Manages the IPsec (XFRM) framework.
netns	Manages network namespaces.
l2tp	Manages Layer 2 Tunneling Protocol (L2TP).
tcp_metrics	Displays and manages TCP metrics.
token	Manages token-based interfaces.
macsec	Manages MACsec (Media Access Control Security) settings.
vrf	Manages Virtual Routing and Forwarding (VRF).
mptcp	Manages Multipath TCP settings.
ioam	Manages In-situ OAM (Operations, Administration, and Maintenance).

Looks like a long list. Right? Well, bear with me as another long list is about to appear for the available options for the ip command.

So here's a list of available options with the ip command:

Option	Description
-V	Print the version of the ip command.
-h	Display help information in a human-readable format.
-s	Display statistics about network interfaces.
-d	Display extra details in the output.
-r	Resolve addresses and names.
-iec	Use IEC units for displaying bandwidth (KiB, MiB, GiB, etc.).
-f	Specify the address family (inet, inet6, or link).
-4	Use IPv4 addresses.
-6	Use IPv6 addresses.
-B	Show only bound addresses.
-0	Show no addresses.
-l <Number of attempts>	Set the maximum number of address flush attempts.
-o	Output one line per command.
-rc <size>	Set the netlink socket to receive buffer size.
-t	Include timestamps in the output.
-ts	Use short timestamps.
-n <name>	Specify the name of a network namespace.
-N	Display numeric output.
-a	Display all available options.
-c	Use color in the output.
-br	Use brief output.
-j	Output in JSON format.
-p	Output in a more readable format (pretty-print JSON).

Now, let's take a look at practical examples of the ip command.

Practical examples of the ip command

In this section, I will walk you through some practical examples that will be helpful to users ranging from basic to advanced users.

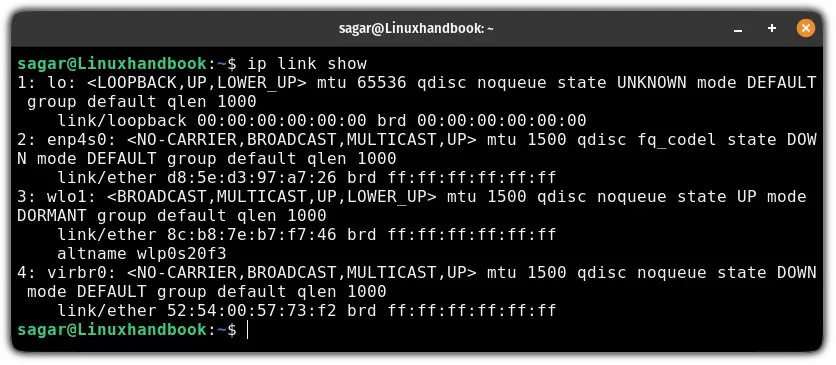

1. List all the network interfaces

To list all the network interfaces of your system, you'd have to use the ip command with the link option as shown here:

ip link show

As you can see, it gets details about the state and functionality of network interfaces on your system.

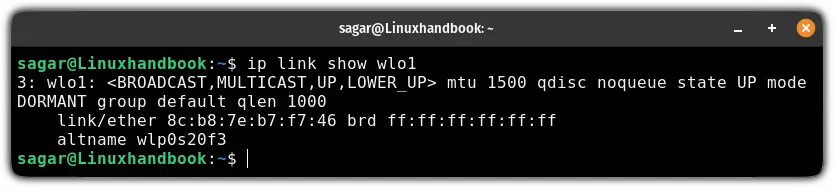

2. Show information of a specific interface

If you want to show information of a specific interface, then all you have to do is append the interface name to the previous command ip link show as shown here:

ip link show <Inerface_name>

For example, if I want to know the details of the wlo1 interface, then I will use the following command:

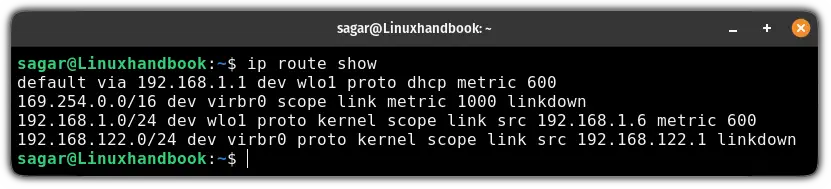

3. Display the routing table

To display the routing table, you use the route flag with the ip command as shown here:

ip route show

The above output includes the default gateway associated with the wireless interface wlo1 where packets will be sent to the router with the IP address 192.168.1.1.

Furthermore, it also shows the routing information of the virtual bridge virbr0 and the linkdown status indicates that the virtual bridge is yet to be activated.

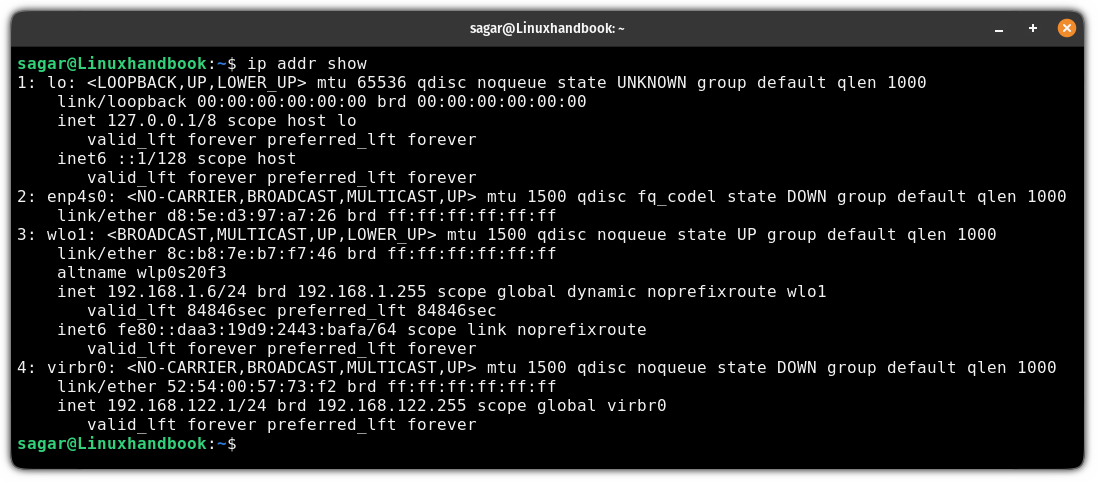

4. Show the IP addresses of each interface

If you want to list the IP address of every interface, then you have to use the addr flag with the ip command as shown here:

ip addr show

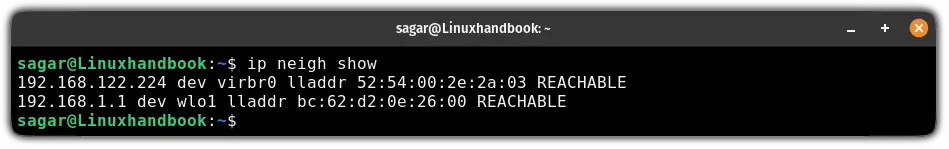

5. Show neighbor table (ARP cache) of every interface

Showing the neighbor table refers to getting valuable information from the devices you're directly connected to on your network such as their MAC addresses.

To show the neighbor table, all you have to do is use the neigh flag as shown here:

ip neigh show

The above output explains that I have two active interfaces (reachable) and an assigned IP range. It also shows the MAC address of the device to which the interface is directly connected.

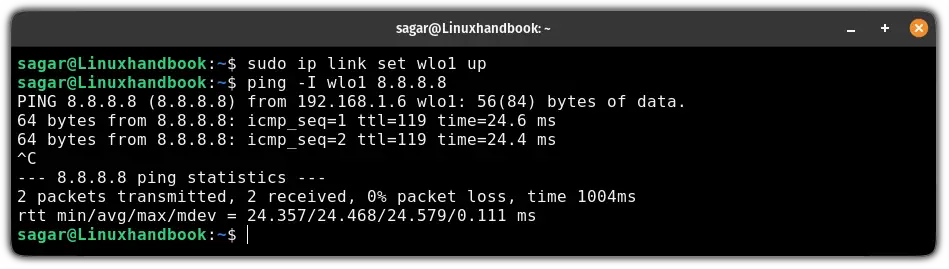

6. Enable network interface

To enable the network interface, you use the link set flag, specify the name of the interface, and then append up flag as shown here:

sudo ip link set <interface_name> up

For example, if I want to enable the wlo1 interface, then I'll use the following:

sudo ip link set wlo1 up

Once done, you can use the ping command and specify the interface over which to ping to the server:

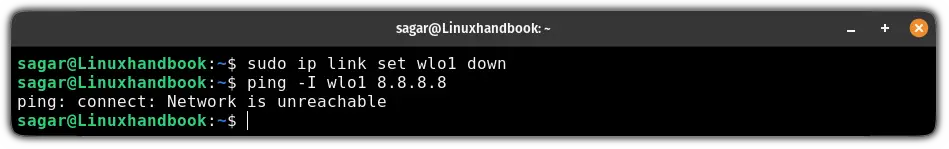

7. Disable network interface

To disable a network interface, use the link set with the down flag as shown here:

sudo ip link set <interface_name> down

Here's how I disabled wlo1:

sudo ip link set wlo1 down

Pretty simple. Right?

8. Assign an IP address to the network interface

To assign an IP address to a specific network interface, use the addr add flag as shown here:

sudo ip addr add <IP/subnet> dev <Interface>

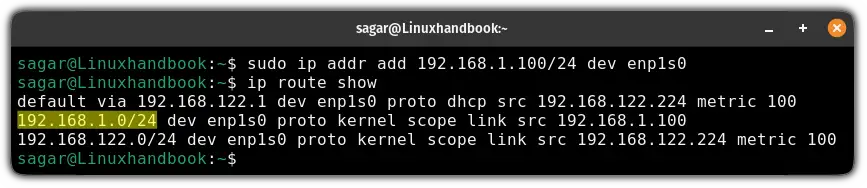

For example, here, I added 192.168.1.100/24 IP address for the enp1s0 interface:

sudo ip addr add 192.168.1.100/24 dev enp1s0

In the above output, I use the ip route to show the routing table and it is working as expected.

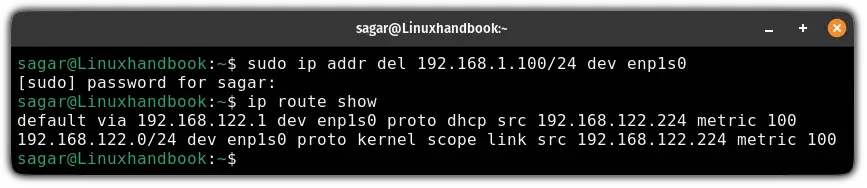

9. Remove IP address from the network interface

If you want to remove IP address, it can be done using the addr del flag as shown:

sudo ip addr del <IP/subnet> dev <Interface>

Here, I removed 192.168.1.100/24 IP address for the enp1s0 interface:

sudo ip addr del 192.168.1.100/24 dev enp1s0

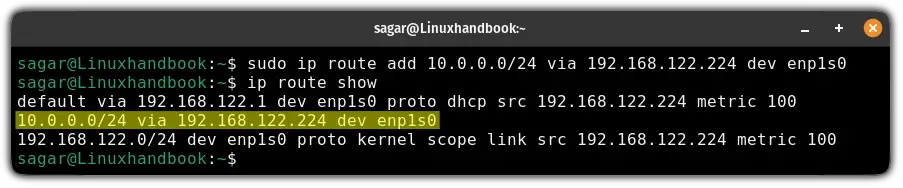

10. Configure static route in the routing table

To configure a static route, you use the route add command in the following manner:

sudo ip route add <destination_network>/<subnet_mask> via <gateway_ip> dev <interface_name>

For example, here, I created a static route for 10.0.0.0/24 via 192.168.122.224:

sudo ip route add 10.0.0.0/24 via 192.168.122.224 dev enp1s0

11. Flush routing cache

To flush the routing cache, you need to use the ip command with route, flush and cache flags. Looks confusing? Here's how it looks:

sudo ip route flush cache

12. Monitor network continuously

This is quite helpful when you have to monitor and print networking events. For that purpose, you'd have to use the monitor flag as shown here:

ip monitor all

Wrapping Up...

In this tutorial, I went through multiple examples of how you can use the ip command in Linux. If the examples are not enough, then you can refer to the given table where I've mentioned every option possible.

I hope you will find this guide helpful.
