A Quick Guide to Using Docker Compose

Docker Compose is a tool that natively integrates with Docker, and makes managing multi-container applications a breeze.

The benefits Docker Compose provides are numerous, some of which include:

1. Manage Container Networks Easily: Connecting two containers via a Docker network is super simple in Docker Compose, being as simple as defining a network and telling the containers to connect to it. In addition, Docker Compose can automatically create and destroy networks as you create and destroy the containers themselves.
2. Container Dependencies: You have a Docker container that needs another Docker container to be up and running, say, a database. Docker Compose allows you to define dependencies for a container, requiring the dependencies to be up and running before anything else will start.
3. Reproducible Setups: Since the container setup will be defined before anything is even created, this allows for reproducibility of setups, making it easier to transfer them to other systems. While you could theoretically do such in something like Bash, it can make things less flexible and harder to adapt to change.

Installing Docker Compose on Linux

Docker Compose is readily available in most distributions repositories.

You can install Docker Compose on Ubuntu and Debian-based distributions using the following command:

sudo apt install docker-compose

On Arch and Manjaro, you may use:

sudo pacman -S docker-compose

On Fedora, you can use the dnf command:

sudo dnf install docker-compose

You may need to put a bit more effort in installing Docker Compose on CentOS.

For any other distributions, you can always look at the installation docs for information on obtaining the needed packages.

Creating Our First Docker Compose File

Docker Compose files are stored under the name docker-compose.yml, and are automatically found when you run docker-compose commands in the same directory. Its syntax takes the form of, you guessed it, YAML.

We have a dedicated tutorial on YAML basics if you are interested in learning about it.

YAML Basics Every DevOps Engineer Must Know

As a DevOps engineer, you’ll be dealing with YAML files a lot. It is always a good idea to understand the basic YAML syntax.

Linux HandbookRakesh Jain

We're going to start with a file that creates a Nextcloud instance, then go over how it actually did what it did.

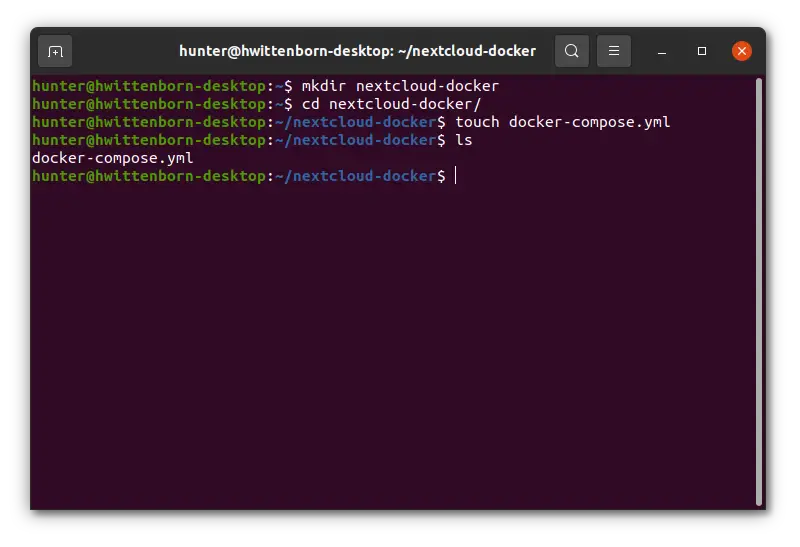

First things first, you need to create the compose file. Create an empty directory on your system, and create the docker-compose.yml file.

Next, fill the file with the following content:

version: '3.5'
services:
  nextcloud_app:
    container_name: nextcloud_app
    image: nextcloud
    restart: unless-stopped
    networks:
      - nextcloud
    ports:
      - 80:80
    volumes:
      - ./data/app:/var/www/html
    depends_on:
      - nextcloud_mariadb

  nextcloud_mariadb:
    container_name: nextcloud_mariadb
    image: mariadb
    restart: unless-stopped
    networks:
      - nextcloud
    volumes:
      - ./data/mariadb:/var/lib/mysql
    environment:
      MARIADB_ROOT_PASSWORD: 'mariadb'

networks:
  nextcloud:
    name: nextcloud_docker_network

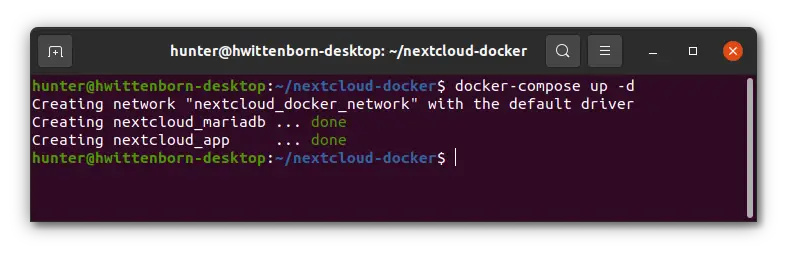

Now all you have to run is docker-compose up -d, and you would have successfully deployed Nextcloud with Docker.

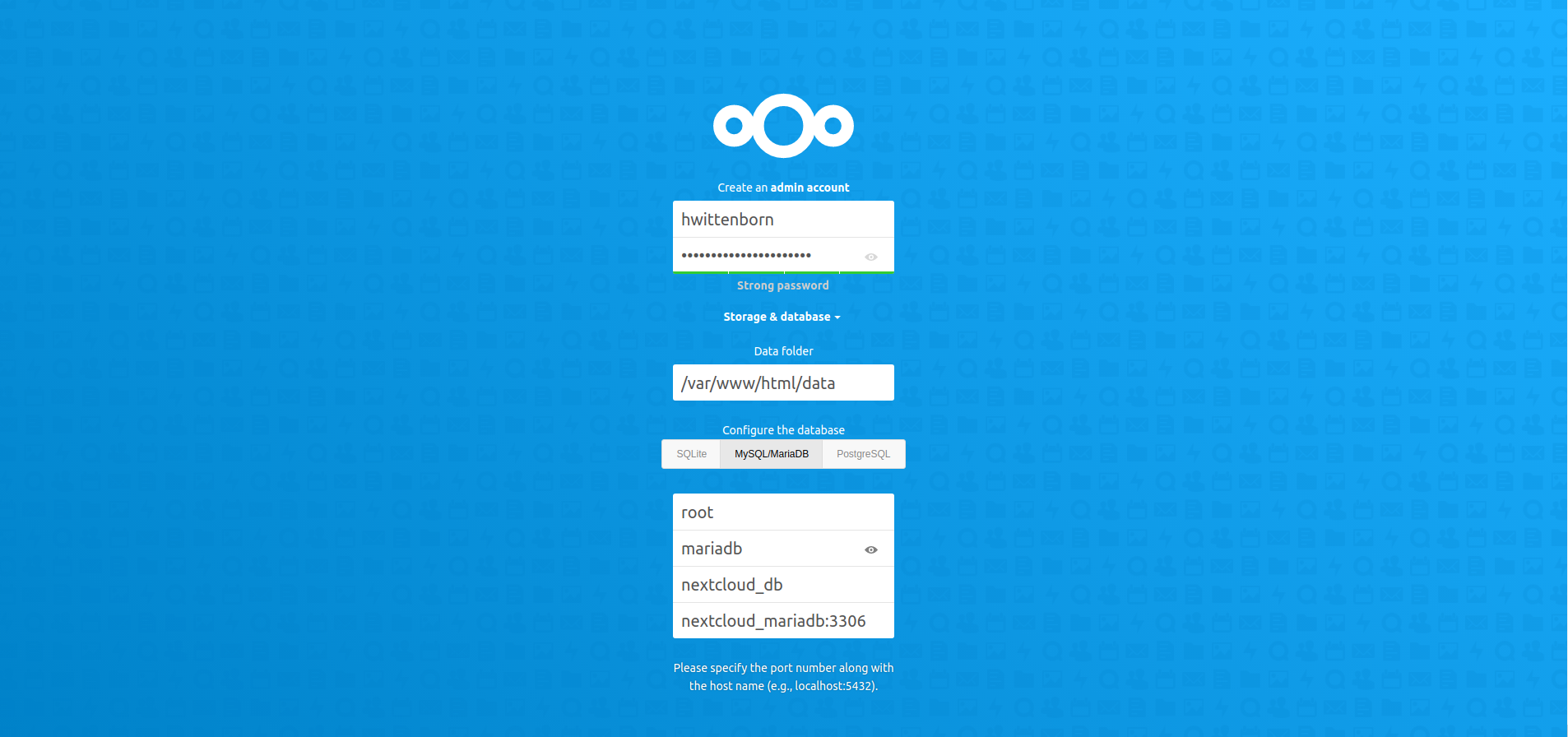

Here's the login page of Nextcloud.

Understanding our Docker Compose File

Now that you have seen that the file actually works, let's go over the contents of the file so that you can actually understand what exactly it's doing.

The 'version' Tag

version: '3.5'

First things first, the version tag. This is just specifying the version of the Docker Compose file format, as different versions will have different syntax. You generally want to keep this to the latest version, but it doesn't have to, which can be helpful if you have some legacy files.

The 'services' Tag

services:
  nextcloud_app:
    container_name: nextcloud_app
    image: nextcloud
    restart: unless-stopped
    networks:
      - nextcloud
    ports:
      - 80:80
    volumes:
      - ./data/app:/var/www/html
    depends_on:
      - nextcloud_mariadb

  nextcloud_mariadb:
    container_name: nextcloud_mariadb
    image: mariadb
    restart: unless-stopped
    networks:
      - nextcloud
    volumes:
      - ./data/mariadb:/var/lib/mysql
    environment:
      MARIADB_ROOT_PASSWORD: 'mariadb'

Next, you see the services tag. This starts the list for all the applications that are created when docker-compose up -d is ran.

Followed by this we start the listing for our first container, nextcloud_app. This serves as the identifier for the app, which can be used by other Docker Compose commands. Note that this is not the name of the container itself - that's specified in the next part.

Now, you start defining everything about your container. Here is a brush-up on what all the fields mean, though most should be self-explanatory if you already know your way around Docker:

• container_name - Defines the name of the container. Equivalent to the --name option.
• image - Defines what image to pull from for the container.
• restart - Defines the restart policy for the container. Equivalent to --restart.
• networks - Defines a network that the container connects to. This network can be created or can already exist. This value serves as an identifier for docker-compose and is not the actual name of the network (that's defined in the networks tag section).
• ports - Defines host ports that the container can connect to. Equivalent to --publish.
• volumes - Defines volumes for the container. Equivalent to --volume.
• environment - Defines environment variables for the container. Equivalent to --env. This option supports two syntax types. The first is variable: value, which is what is used here. The other option, which may be more familiar if you are used to the docker CLI syntax, is - variable=value.
• depends_on - Specifies container dependencies. This is used to require a container to not start until its dependencies have. This accepts values from the container listings. (Not container_name!)

The 'networks' Tag

networks:
  nextcloud:
    name: nextcloud_docker_network

Now you get to the networks tag. This is used to define the networks we listed under networks for our containers.

Inside the networks section, you first list the identifier that you gave to the network under services. Here, that was nextcloud.

Next, you define the name of the network that can be seen with docker network ls. Here, we named it nextcloud_docker_network.

If you wanted the containers to join a network that already existed, you would use the following syntax, replacing network_name with the name of the Docker network:

networks:
  nextcloud:
    external: true
    name: network_name

And there you go. That sums up the whole file!

Closing Up

Now you know the basics to using Docker Compose, and the benefits you can get through its use. You're also now on your way to understanding what people are doing when they distribute their containers through Compose files.

Something not working, or got some lingering questions? You are welcome to leave them in the comment section below.
